Product Overview
Column-clad aluminum panels use high-strength aluminum alloy sheets as the base material, which are CNC cutting, bending, and welding, combined with surface treatments such as polyester bake paint, fluorocarbon spraying, and wood grain transfer printing. They are metal decorative materials specially designed for the cladding and decoration of building columns. The product can precisely adapt to various column shapes such as round, square, curved, and irregular shapes, supporting surface hollow-out carving, pattern punching, and custom shapes. It combines post protection, spatial decoration, and style unification. It is a high-performance upgrade solution replacing stone, solid wood, and stainless steel columns, widely used in interior and exterior column decoration for commercial complexes, hotels, office buildings, and transportation hubs in Guangzhou and South China.
Core Advantage
1. Highly customizable and adaptable, suitable for all types of columns
Customizable 1:1 processing based on column size and shape, perfectly fitting various columns such as round, square, polygonal, and curved shapes; Supports personalized designs such as surface hollow-out carving, artistic punching, and gradient textures. Exclusive patterns can be customized with brand logos and space themes to meet diverse design needs.
2. Stable and durable performance, suitable for complex environments
The aluminum alloy substrate has high strength and good rigidity, making it impact-resistant and not easily deformed; Fire resistance rating of Class A is non-combustible, complying with GB 8624-2012 fire protection standard; It offers excellent waterproof, moisture-proof, corrosion-resistant, rust-resistant, and UV resistance, making it suitable for stable use both indoors and outdoors, and can withstand long-term adaptation to harsh environments such as coastal humidity and outdoor sun exposure.
3. Unified decorative effect with outstanding overall texture
Industrial production produces no color differences or natural defects, with a flat and smooth column surface and uniform seams in the joints; Colors, textures, and textures can be perfectly matched with aluminum panels, aluminum square tubes, and aluminum buckle panels in the same space, achieving a unified overall decorative style and greatly enhancing the space's refinement and sense of luxury.
4. Environmentally friendly and easy to maintain, with low long-term operation and maintenance costs
The metal substrate emits no formaldehyde and meets indoor environmental standards; aluminum materials can be 100% recycled and reused; The surface coating is dense and smooth, anti-static and dust-free. Oil stains and stains can be cleaned with a neutral detergent, requiring no special care; Under normal use, the indoor lifespan can reach 15-20 years, and the outdoor fluorocarbon model can last 10-15 years.
5. Easy and efficient installation, with convenient later maintenance
Uses hang-mounted dry-work installation, ensuring no wet work and high efficiency; Each panel can be independently disassembled and replaced without damaging the overall column structure, facilitating later inspection and maintenance of pipelines and equipment inside the column, significantly reducing long-term operation and maintenance costs.
Product Classification & Selection Guide
1.Classified by column shape
- Round column-wrapped aluminum panels: Made by joining two or more curved panels into a complete cylinder, with precise curvature and tight joints, commonly used in shopping malls and hotel lobbies.
- Square column-clad aluminum panels: Flat veneers are spliced to wrap square columns, featuring mature craftsmanship and high cost-effectiveness, widely used in office buildings and public buildings.
- Special-shaped column-clad aluminum panels: customized processing for special columns such as conical, curved, and polygonal shapes, adapting to personalized design needs.
2.Classified by installation type
- Dense assembly installation: The panel joints have very small gaps, resulting in a complete and continuous overall column surface, resulting in a smooth and refined visual effect, commonly used in high-end interior decoration scenarios.
- Joint installation: Uniform gaps are reserved between panels, allowing for the filling of weather-resistant adhesive, balancing structural expansion and contraction margin with decorative layering. It is more widely used outdoors and for large columns.
3.Classified by surface function
- Flat decorative model: Flat and smooth surface, focusing on basic protection and decorative effects, suitable for the widest range of scenarios.

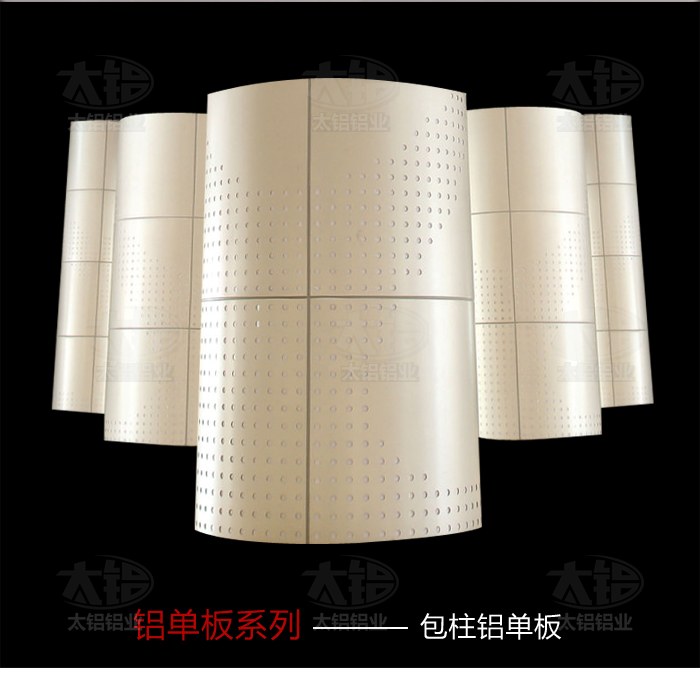

- Hollowed-out style: The surface is CNC engraved with hollow patterns, which can be paired with internal translucent designs, combining decoration and lighting effects, and are mostly used in distinctive commercial spaces.
- Functional composite model: The back can be filled with insulation cotton and sound-absorbing cotton to expand insulation, soundproofing, and sound-absorption functions, adapting to special functional spaces.
4.Preliminary preparations for construction
- Review the quality of the main structure, focusing on the verticality, flatness, and opening position of the columns. Any deviations need to be addressed in advance to ensure the frame installation reference is accurate.
- On-site measurement of column dimensions, verification of construction drawings and processing drawings to ensure the customized product matches the site exactly, avoiding dimensional errors.
- Construct construction scaffolding that meets safety standards, with at least 50cm of operating space reserved from the frame and column surface to meet installation requirements.
- Only after confirming that the base of the columns has been treated and the base plastering, anti-corrosion and rust prevention processes are completed and accepted as accepted, can construction proceed to the site.
5.Standard installation procedures
On-site line marking and positioning→ installation of fixed frame keels→ leveling of the skeleton's verticality and flatness→ hanging of column-wrapped aluminum panels→ adjustment of joint gaps→ sealing/edge finishing→ and finished product protection and acceptance
6.Application Scenarios

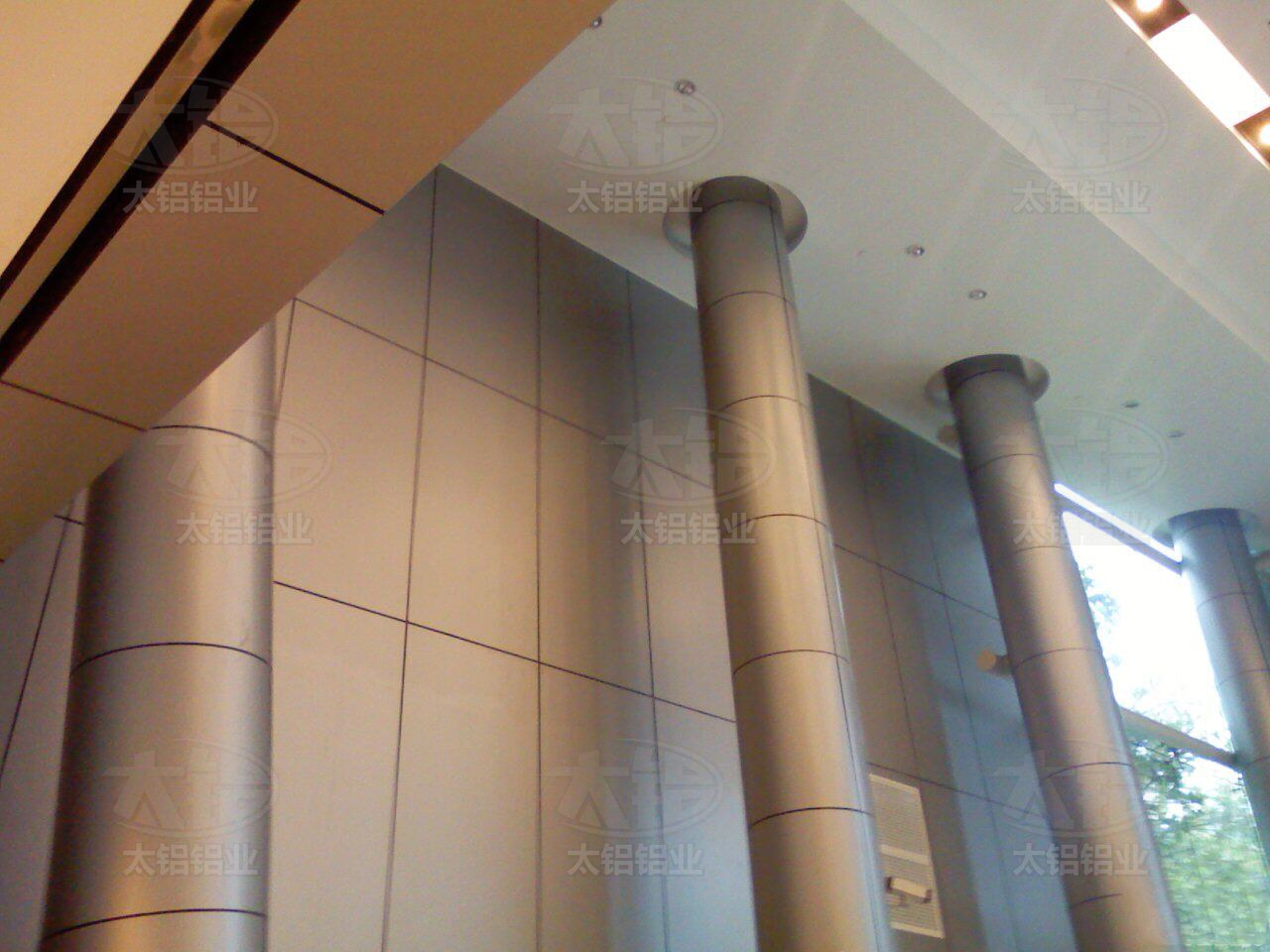

- Indoor scenarios: mall atrium columns, hotel lobby columns, office building lobby columns, hospital/school public area columns, subway/airport station lobby columns, exhibition venue columns
- Outdoor scenes: building facade corridor columns, outdoor landscape columns, canopy support columns, corridor structural columns
FAQS
1. Can column-clad aluminum panels be freely customized in size and shape?
A: Supports full-dimensional customization. Standard thicknesses are available at 2.0mm, 2.5mm, and 3.0mm. Column diameter, side length, and height can all be customized according to actual on-site measurements; It also supports various shapes such as hollowing, punching, curved, and irregular shapes, with custom styles available upon request.
2. What are the advantages of column-clad aluminum panels compared to stone or solid wood columns?
A: Core advantages focus on performance, cost, and customization:
- In terms of performance: Grade A aluminum single panels are fireproof, waterproof, moisture-proof, resistant to mold and insect damage, suitable for both indoor and outdoor use, and have a lifespan far longer than solid wood and stone;
- In terms of weight: the self-weight is only 1/3 to 1/5 that of stone, significantly reducing the load on building columns and making installation safer;
- In terms of customization: it can achieve complex shapes and hollow patterns, with colors and textures fully unified with other metal decorations in the space;
- Cost: No maintenance required, low long-term operation and maintenance costs, and overall cost-performance ratio superior to high-end stone and solid wood.
3. What Outdoor Column Wrapping Process Should Be Selected? How long is its lifespan?
- For outdoor applications, column-clad aluminum panels with fluorocarbon spraying technology are preferred, offering excellent UV resistance, weather resistance, and corrosion resistance. Under normal outdoor conditions, they can last 10-15 years without fading or cracking; In coastal areas with high salt spray, higher-grade fluorocarbon coatings can be selected to further enhance corrosion resistance.
- For indoor settings, polyester baking paint is sufficient, with a normal service life of 15-20 years.
4. Is the installation cycle for column-clad aluminum panels long? Is the construction difficult?
- The construction period depends on the number of columns and the complexity of the shape. Conventional standard columns require installation of a single column in just a few hours, and batch construction can operate simultaneously at multiple stations, with efficiency far higher than stone or solid wood column wrapping.

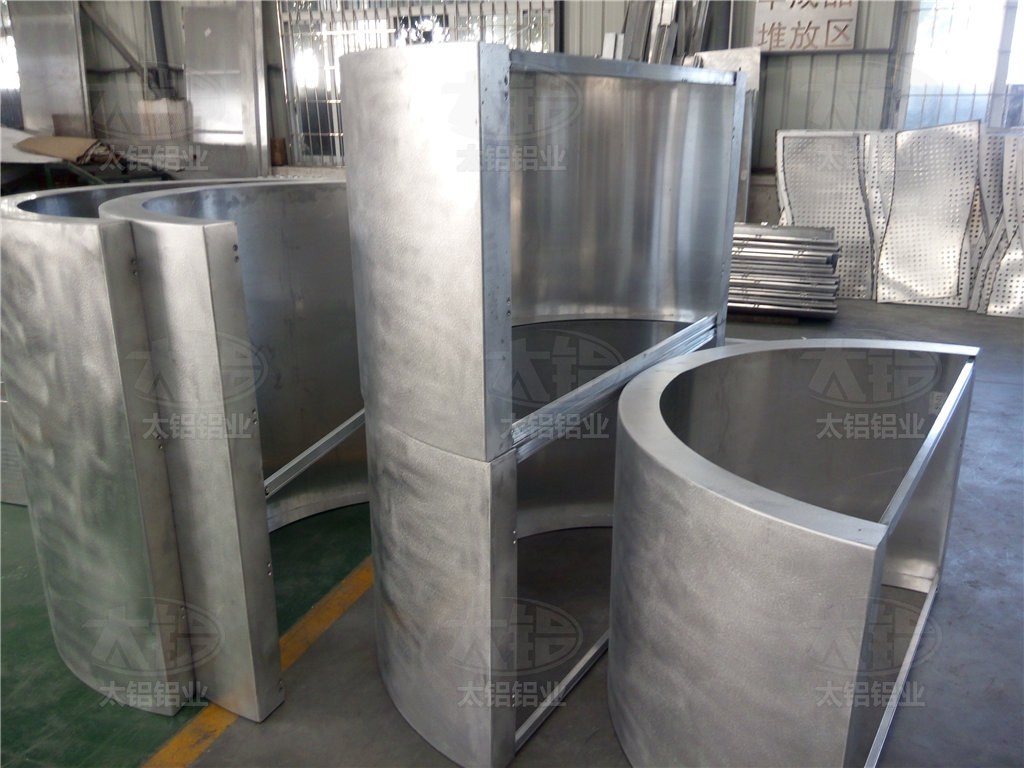

- The products are factory-prefabricated, requiring only frame and panel mounting on site. It is a dry operation construction with mature technology, allowing a professional team to quickly complete installation and use immediately.
5. Does hollowed-out column-clad aluminum panels affect structural strength?
A: No. All hollow designs undergo structural force calculations, and perforation engraving is carried out while ensuring the overall rigidity of the panels. Conventional decorative hollowing does not affect structural strength at all; If special force requirements exist, structural stability can be further strengthened by increasing panel thickness and reinforcing the back.
6. How should column-wrapped aluminum panels be cleaned and maintained daily?
A: Maintenance is very simple: daily dust can be wiped off with a dry cloth or feather duster; For grease and stubborn stains, mix a neutral detergent with water, dip a soft cloth in it, wipe it clean, then clean with clean water. Do not use steel wool or strong acid or alkali cleaners to avoid scratching or corroding the surface coating.
