O-Type Aluminum Square Tube — Also known as round-tube aluminum square tube, round aluminum square tube, or O-type tube aluminum ceiling, it is a profile-type product in the aluminum square tube category with a fully closed circular cross-section, and a preferred high-end material for open ceilings and space partitions. The product uses 6063-T5 aluminum alloy as the base material, formed by high-temperature hot extrusion into uniform-diameter round tubes in a single process. The surface is finished through polyester spraying, fluorocarbon spraying, wood grain transfer, and other processes, and installed using a dedicated clip-on keel for suspension and fixing.
Unlike the right-angle bent-edge structure of U-shaped square tubes, the O-type aluminum square tube has a smooth, rounded cross-section with 360° seamless edges and no dead corners, giving it soft, modern lines and combining excellent structural strength with an open decorative effect. It can be arranged in parallel as a ceiling, installed vertically as a space partition, or used as an exterior facade grille. It is widely applied in high-end commercial spaces, transportation hubs, offices, and distinctive architectural decoration across Guangzhou and the South China region.
Core Advantages
1. Round and Soft Design with a Premium Visual Feel — The closed round tube cross-section, formed in one piece, has no folded edges and no sharp corners. The 360° arc surface transitions naturally in light and shadow, with simple, flowing lines—distinct from the hard, industrial feel of conventional square tubes. The style is softer and more refined, suiting a range of design aesthetics including modern minimalism, light luxury, Japanese, and new-Chinese. Large-scale arrangements look orderly and premium, while use in small spaces creates no sense of oppression.
2. One-Piece Profile Structure with High Strength and Deformation Resistance — The closed round tube formed by high-temperature extrusion in a single process has mechanical properties far superior to cold-bent open U-shaped square tubes. With uniform wall thickness and excellent straightness, it offers strong bending and wind-pressure resistance, does not sag or deform easily in large-span installations, and remains stable during normal use without shaking or noise.
3. Strong Openness and Depth, Compliant with Fire-Safety Codes — Parallel round tubes leave uniform gaps for smooth vertical air circulation and excellent heat exhaust and ventilation. The open structure does not block the working range of fire sprinklers and smoke detectors, meeting fire-safety inspection requirements for public spaces without extra openings. Both the overhead and side views remain clean and aesthetic.
4. Multi-Scenario Adaptability and Wide Application — It can be installed horizontally as a ceiling, vertically as a space partition, or used as an exterior facade grille. The round tube has no sharp edges, making it highly safe as a partition—it separates spatial functions without blocking sightlines or daylight, achieving the effect of "dividing without interrupting" the space.
5. Easy Installation and Removal with Flexible Later Maintenance — Fixed with a dedicated clip-on keel, each round tube can be independently clipped in or removed without dismantling the overall structure, making maintenance of overhead pipes, lighting, and fire-fighting equipment extremely convenient. The entire installation uses dry construction with high efficiency and no later maintenance costs.
6. Outstanding Weather Resistance for Both Indoor and Outdoor Use — The aluminum alloy profile base is waterproof, moisture-proof, and corrosion/rust-resistant. Paired with a fluorocarbon surface finish, it withstands UV, rain, and salt-spray erosion, enabling stable use both indoors and outdoors. The service life reaches 15–20 years in normal indoor environments, and 10–15 years for outdoor fluorocarbon types.
7. Flexible Customization to Meet Personalized Designs — Supports full-dimensional customization of tube diameter, wall thickness, color, and length, with finishes in solid colors, wood grain, metallic colors, and more. Through CNC stretch bending, curved and wavy round tubes can be produced, and special arrangements such as staggered heights, gradient spacing, and two-color splicing can also be achieved, meeting a wide range of personalized design needs.
Product Common Classifications
By Surface Finish
- Polyester-Coated O-Type Square Tube: rich colors, high cost-effectiveness, primarily for indoor ceilings and partitions—the mainstream choice for standard projects.
- Fluorocarbon-Coated O-Type Square Tube: outstanding weather, UV, and corrosion resistance, designed specifically for outdoor facades, canopies, corridors, and other outdoor scenarios.

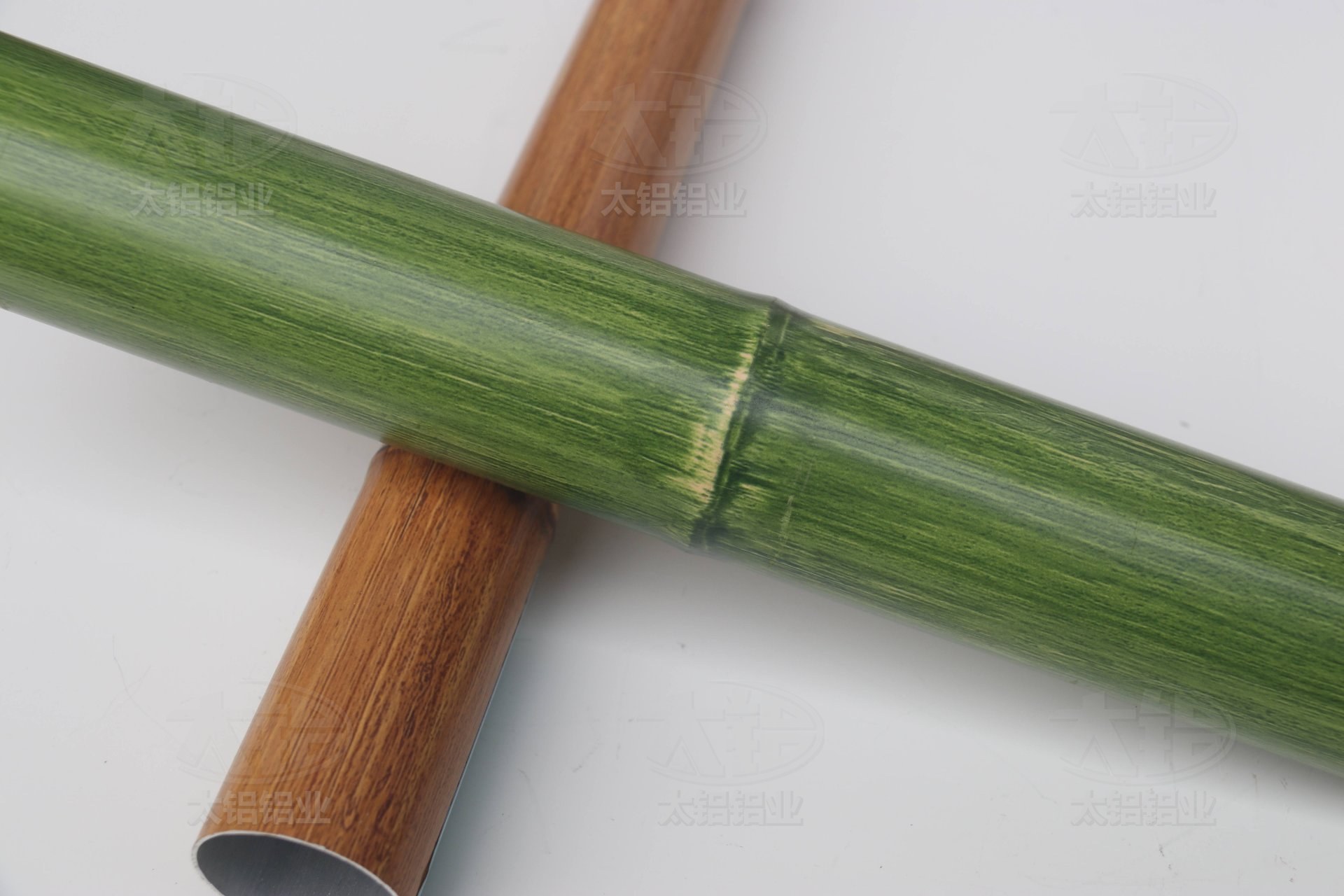

- Wood Grain Transfer O-Type Square Tube: replicates natural wood texture with a warm, natural feel; available in indoor weather-resistant and outdoor fluorocarbon wood grain types—a common "aluminum-substituting-for-wood" choice.
- Anodized O-Type Square Tube: strong metallic texture, high surface hardness, and wear/scratch resistance—used in high-end commercial spaces, Grade-A office buildings, and other venues with high texture requirements.
By Functional Structure
- Smooth O-Type Square Tube: basic smooth round tube, primarily for decoration and structure, with the widest range of applications.
- Perforated O-Type Square Tube: the tube body is stamped with regular micro-holes and filled with sound-absorbing cotton, combining open decoration with noise reduction and sound absorption—suitable for stadiums, stations, and other spaces with acoustic requirements.
- Shaped O-Type Square Tube: processed via CNC stretch bending and welding into arc, tapered, wavy, and other special shapes, suiting personalized ceiling and partition designs.
By Tube Diameter Specification
- Small diameter (25–50mm): fine, delicate lines; mostly used for dense partitions, small-space ceilings, and decorative shapes.
- Medium diameter (60–100mm): balanced proportions, combining decoration with cost-effectiveness—the general-purpose specification for interior ceilings and conventional partitions.
- Large diameter (120mm and above): strong visual impact; mostly used for large-space ceilings, building facade grilles, and large entrance canopies.

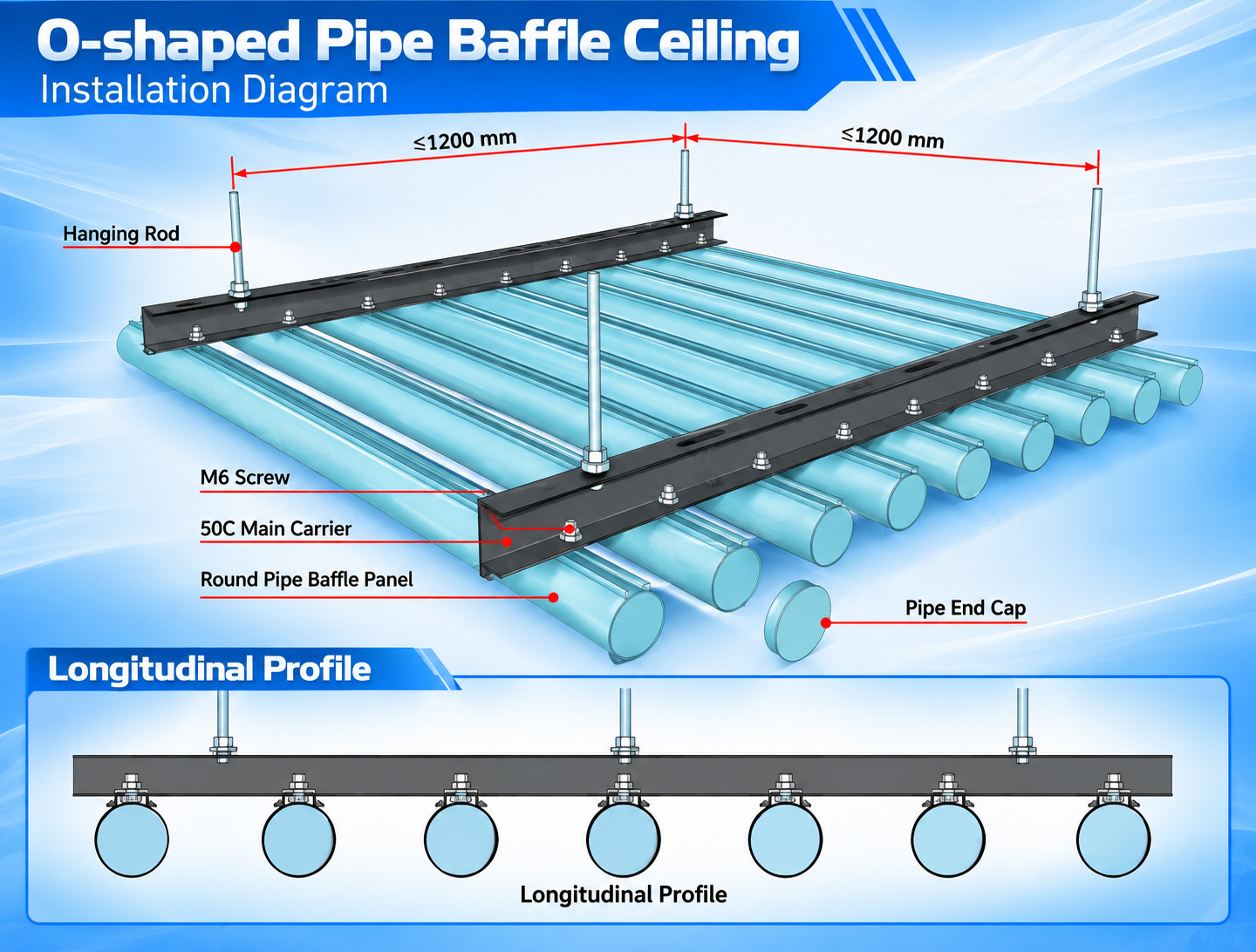

Installation System Components
The standard O-type aluminum square tube system consists of hanger rods, main keels, dedicated round-tube clip-on keels, O-type aluminum square tubes, and edge-fixing accessories:
- The hanger rods are fixed to the building slab via expansion bolts and carry the overall load, with main keel spacing controlled at 1.0–1.2m;
- The dedicated clip-on keel connects the main keels transversely and features elastic clip positions matching the round tubes, allowing flexible adjustment of tube spacing and overall leveling;
- The O-type aluminum square tube is fixed by directly clipping into the keel clips. When used vertically as a partition, upper and lower fixing bases are paired to ensure the tube remains vertical and stable.
Applicable Scenarios
- Commercial Spaces: shopping mall atriums, brand stores, hotel lobbies, dining spaces, showrooms, clubs, supermarkets
- Public Buildings: airport terminals, metro stations, high-speed rail stations, sports halls, libraries, hospitals, schools
- Space Partitions: open-plan office separation, restaurant screens, entryway partitions, exhibition hall functional zoning
- Outdoor Scenarios: building facade grilles, entrance decoration, canopy ceilings, corridor sun-shading, landscape features
Frequently Asked Questions (FAQ)
1. What are the common tube diameters of O-type aluminum square tubes? How to choose the right specification?
Common diameters are 25mm, 32mm, 40mm, 50mm, 60mm, 80mm, 100mm, and 150mm, with length customizable as needed. Selection principle: for small spaces and dense partitions, choose 25–50mm small diameters for a refined, non-oppressive look; for conventional interior ceilings and semi-translucent partitions, choose 60–100mm medium diameters for the best cost-effectiveness; for large spaces and building facades, choose 120mm and above for a grander visual effect. The higher the ceiling and the larger the space, the larger the tube diameter you can select.
2. What is the difference between O-type and U-type aluminum square tubes? How to choose?
The core differences lie in structure, shape, and applicable scenarios:
- Structurally: the O-type is a closed round tube profile formed by one-piece extrusion, with high strength and good wind resistance; the U-type is mostly a cold-bent open groove from aluminum sheet—cost-effective and lightweight.
- Visually: the O-type is round and soft with a 360° seamless finish—refined and premium; the U-type has crisp, hard lines with a stronger industrial feel.
- In application: the O-type can be used for ceilings, partitions, and outdoor grilles with richer scenarios; the U-type is mainly used for interior ceilings—as a partition, its open side reduces aesthetics.
- In price: for the same specification, the O-type profile square tube is 20%–30% more expensive than the U-type cold-bent square tube.
3. Can O-type aluminum square tubes be used outdoors? How is the windproof performance?
Ordinary indoor polyester types are not recommended for direct outdoor use. Outdoor scenarios require targeted selection: prioritize profile round tubes with wall thickness ≥1.2mm, fluorocarbon spraying finish, and a dedicated anti-wind clip-on keel, which provides excellent wind-uplift resistance and withstands ordinary strong winds—fully suitable for building facades, entrances, canopies, and corridors. In high-salt coastal areas, a higher-grade fluorocarbon coating can be selected to enhance corrosion resistance.
4. Are O-type aluminum square tubes good as partitions? What are the advantages?
The O-type aluminum square tube is a high-quality metal partition material with outstanding advantages:
- Safety: the round tube has no sharp edges, reducing injury risk on impact—suitable for public spaces and family-friendly venues;
- Transparency: spacing is flexibly adjustable, separating functional zones without blocking sightlines or daylight, achieving "dividing without interrupting";
- Aesthetics: the 360° arc surface looks clean and refined from both front and back, with no open-edge issues as in U-type square tubes;
- Durability: the metal material is waterproof, moisture-proof, and resistant to deformation, and is easier to maintain than wood or glass partitions.
5. How should the installation spacing of O-type aluminum square tubes be determined?
There is no mandatory standard for spacing; it is primarily determined by purpose and design effect:
- Ceiling purely decorative, emphasizing openness: spacing of 100–200mm for a strong sense of openness;
- Ceiling needing to conceal overhead pipes: spacing of 50–100mm to keep the ceiling structure out of sight at eye level;
- Semi-translucent partition: spacing of 50–80mm, balancing separation and daylight;
- High-privacy partition: spacing of 20–40mm for stronger screening.
6. Can O-type aluminum square tubes be made into curved or wave shapes?
Yes, custom processing is supported. Through CNC stretch bending, round tubes can be formed into arcs of any curvature, S-shapes, and wave profiles, suiting special designs such as curved ceilings, circular column cladding, and curved partitions. Rich three-dimensional effects can also be created through staggered heights, gradient tube diameters, and two-color splicing.
7. Will wood grain O-type aluminum square tubes fade? How long is the service life?
High-quality thermal transfer wood grain O-type square tubes retain their color for 10+ years of normal indoor use with no obvious fading or peeling. For outdoor use, the fluorocarbon weather-resistant wood grain type must be selected; it passes the QUV UV aging test, guaranteeing 10–15 years of weather resistance and resistance to fading and aging under normal outdoor conditions. The service life of indoor smooth round tubes reaches 15–20 years, and 10–15 years for outdoor fluorocarbon types.
8. What is the approximate cost of an O-type aluminum square tube ceiling per square meter?
The price is significantly affected by tube diameter, wall thickness, surface finish, and arrangement density:
- Indoor standard polyester-coated type (including keel installation): approx. 120–220 RMB/㎡ (materials and labor included)
- Wood grain transfer type (including keel installation): approx. 160–280 RMB/㎡ (materials and labor included)
- Outdoor fluorocarbon type (including anti-wind keel installation): approx. 200–350 RMB/㎡ (materials and labor included)
- Large-diameter, thick-wall, and curved types: higher prices, quoted individually based on the design scheme.
The larger the diameter, the thicker the wall, and the denser the arrangement, the higher the cost per square meter.
9. Is O-type aluminum square tube installation difficult? How long is the construction period?
It uses modular dry construction with mature techniques and moderate difficulty. The standard process is: marking and positioning → installing hanger rods and main keels → fixing the dedicated clip-on keel → clipping in the O-type square tubes → adjusting spacing and leveling → edge fixing. For a typical space within 100㎡, 2–3 skilled workers can complete installation in 1–2 days; large projects can use multiple crews in a flow-line manner for high efficiency, with immediate use and no curing period. Vertical partition installation requires upper and lower fixing bases, and the process is equally simple.
10. How should O-type aluminum square tubes be cleaned and maintained daily?
Maintenance is very simple: the smooth, rounded tube surface does not easily collect dust—daily floating dust can be removed with a feather duster or dry soft cloth; stains can be wiped with a soft cloth dampened with a diluted neutral cleaner, then rinsed clean with water. Do not use steel wool or strong acid/alkali cleaners, which can scratch or corrode the surface coating. When used as a partition, simply check periodically whether the fixing bases are loose—no special maintenance is required.
